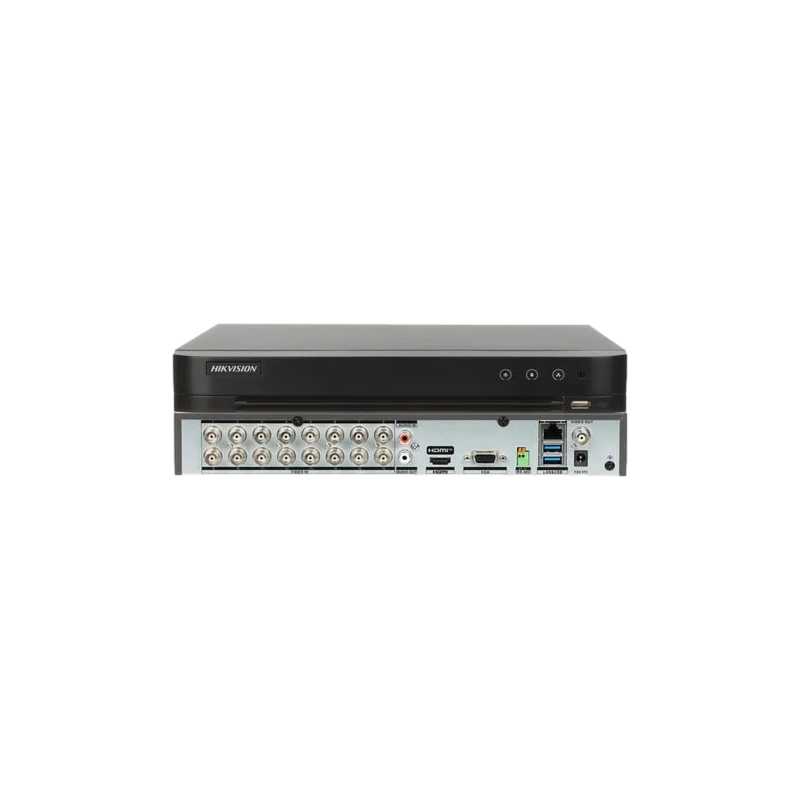

DVR HIKVISION 16CH up to 5MP (IDS-7216HQHI-M1/XT)
  • DVR HIKVISION 16CH up to 5MP (IDS-7216HQHI-M1/XT)
  • DVR HIKVISION 16CH up to 5MP (IDS-7216HQHI-M1/XT)

DVR HIKVISION 16CH up to 5MP (IDS-7216HQHI-M1/XT)

HIKVISION

16-ch 1080p 1U H.265 AcuSense DVR

  • 16 channels and 1 HDD 1U AcuSense DVR
  • Support 4-ch Facial Recognition or 8-ch advanced model Perimeter Protection based on Deep Learning algorithm
  • Support 8-ch AcuSearch Technology
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 3K/5MP Lite@12fps
  • Up to 24-ch IP camera inputs, each channel up to 6MP
  • Up to 24*1080P@30fps decoding ability
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Support All channels Motion Detection Technology
  • Support All channels HDTVI Two-Way Audio Technology
Rp3.370.000
Belum Termasuk pajak
Jumlah
5 item

Tanyakan tentang produk di WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Keterangan

Specification

Facial Recognition

Face Picture Comparison

Face picture comparison, face picture search (4-ch face picture comparison alarm for

HD analog camera)

Face Picture Library

Up to 16 face picture libraries,;

HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Perimeter Protection

Human/Vehicle Analysis

Up to 8-ch (advanced model)

Facial Detection

Facial Detection and Capture

Face picture detection, face picture search；

4-ch face picture capture

Video and Audio

IP Video Input

8-ch (up to 24-ch), Up to 6 MP resolution

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4

MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps

AHD Input

5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps,

720P@25/30fps

HDCVI Input

3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30

fps,1080P@25/30 fps, 720P@25/30fps

CVBS Input

PAL/NTSC

CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω),

resolution: PAL: 704 × 576, NTSC: 704 × 480

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×

1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

HDMI/VGA simultaneous output

Audio Input

1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

16-ch

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps

(N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:

3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support main stream or sub stream

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Decoding

Decoding Capability

up to 24-ch 1080P@30fps

Network

Remote Connection

128

Total Bandwidth

256 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,

ONVIF, ISUP

Network Interface

1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface, up to 12 TB capacity for each disk

Serial Interface

RS-485 (half-duplex)

USB Interface

Front panel: 1 × USB 2.0;

Rear panel: 2 × USB 3.0

Alarm In/Out

N/A (optional to support)

General

Power Supply

12 VDC, 2 A

Consumption

≤ 24 W

Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)

Weight

≤ 2 kg (4.4 lb)
