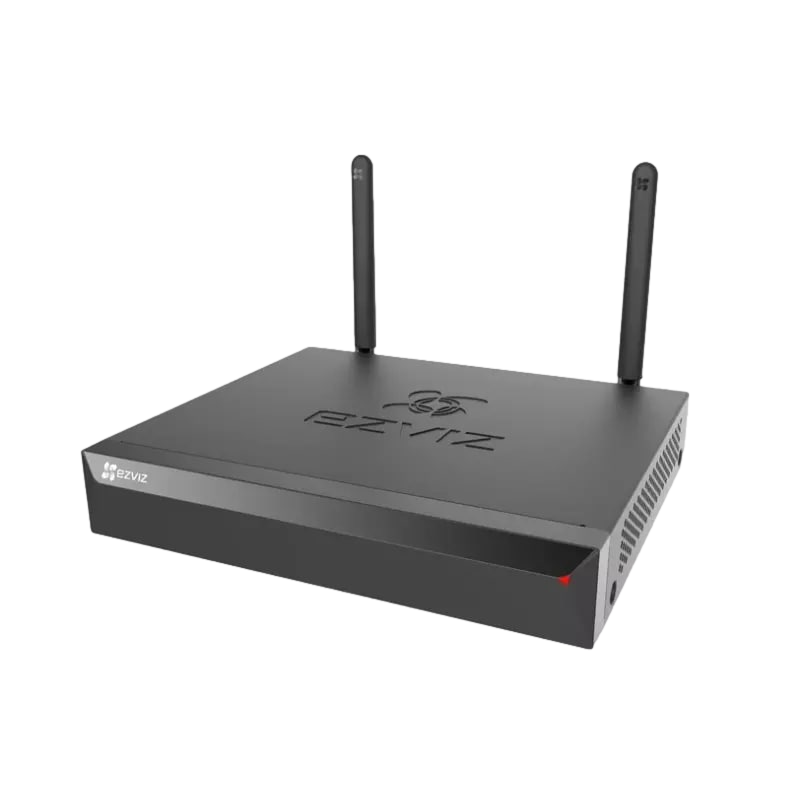

NVR EZVIZ 8 CH
NVR nirkabel X5S berteknologi kompresi video canggih dan mendukung hingga 8 unit kamera Wi-Fi 5 Megapiksel. Output HDMI/VGA.
Security policy
(edit with the Customer Reassurance module)
Delivery policy
(edit with the Customer Reassurance module)
Return policy
(edit with the Customer Reassurance module)
Keterangan
Specifications
|
Model Parameters |
||
|
Model |
X5S-4W |
X5S-8W |
|
IPC access capability |
||
|
Wireless IPC access capability |
5MP *4 |
5MP *8 |
|
Wired IPC access capability |
5MP *4 |
5MP *8 |
|
Network Parameter |
||
|
Antenna Number |
2 |
2 |
|
Maximum wireless Range |
100m |
100m |
|
Radio frequency |
2.4G |
2.4G |
|
Ethernet Port |
one 10/100M adaptable ethernet interface |
one 10/100M adaptable ethernet interface |
|
Required access bandwidth |
50mbps |
100mbps |
|
Video Output |
||
|
VGA |
1 channel (identical to HDMI output) resolution up to: 1920*1080/60Hz |
1 channel (identical to HDMI output) resolution up to: 1920*1080/60Hz |
|
HDMI |
1 Channel resolution up to: 2560*1440/30HZ |
1 Channel resolution up to: 2560*1440/30HZ |
|
Audio/Video Codec |
||
|
Recording resolution |
5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF |
5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF |
|
Video compression |
H.265, H.264 |
H.265, H.264 |
|
Decode playback |
Support 4*5MP |
Support 8*5MP |
|
Video Recording Management |
||
|
Video recording mode |
Manual video recording; Motion detecton recording; Scheduled video recording; Event triggered recording |
Manual video recording; Motion detecton recording; Scheduled video recording; Event triggered recording |
|
Video recording mode |
Hard disk backup, Internet applicaton backup |
Hard disk backup, Internet applicaton backup |
|
Playback mode |
Instant playback; Normal playback; Event playback; Tag playback; Log event playback |
Instant playback; Normal playback; Event playback; Tag playback; Log event playback |
|
Open protocol |
||
|
Open protocol support |
Yes |
Yes |
|
HDD |
||
|
Interface type |
One built-in SATA port |
One built-in SATA port |
|
Capability |
Supports 1TB to 8TB 3.5inch HDD |
Supports 1TB to 8TB 3.5inch HDD |
|
External Interface |
||
|
Audio output |
Not support |
Not support |
|
Audio input |
Not support |
Not support |
|
Hardware reset |
Supports |
Supports |
|
USB2.0 interface |
1 |
1 |
|
Dimensions (mm) |
||
|
Product dimensions |
235mm x 270mm x 44.5 mm |
235mm x 270mm x 44.5 mm |
|
Packaging dimensions |
387mm x 362mm x 75mm |
387mm x 362mm x 75mm |
Detail produk
NVR nirkabel X5S berteknologi kompresi video canggih dan mendukung hingga 8 unit kamera Wi-Fi 5 Megapiksel. Output HDMI/VGA.
