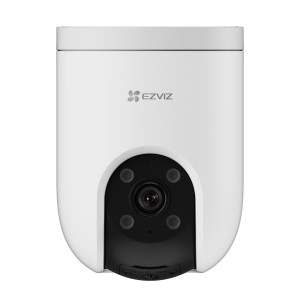

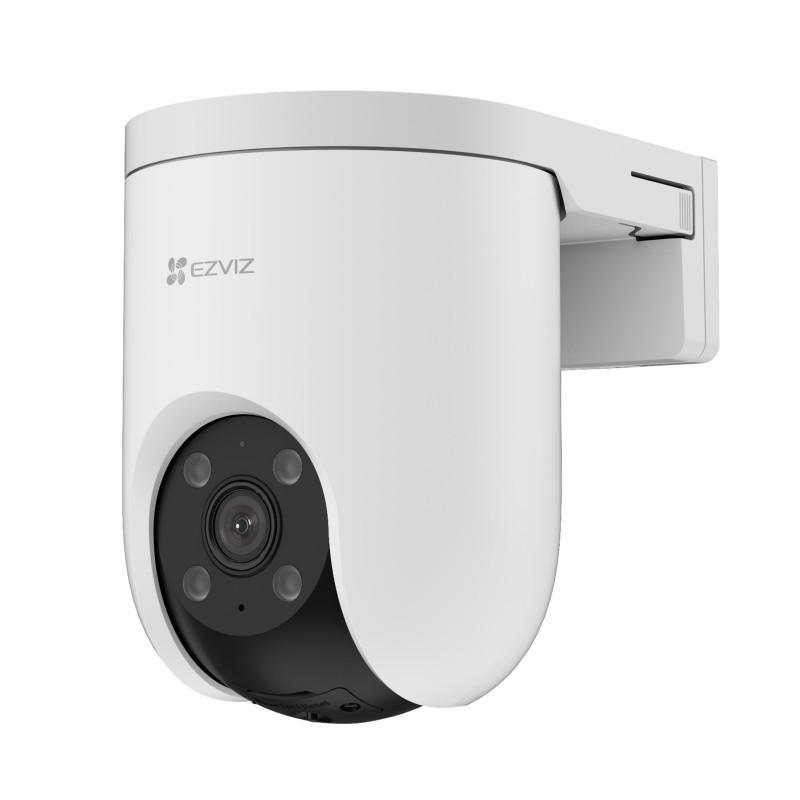

EZVIZ H8c 3K/ 5mp kamera outdoor wireless

Specifications

Model

CS-H8c Pro (3K)

Camera

Image Sensor

1/2.7" Progressive Scan CMOS

Shutter Speed

Self-adaptive shutter

Lens

4mm@ F1.6, viewing angle: 48° (Vertical), 91° (Horizontal), 108° (Diagonal) 6mm@ F1.6, viewing angle: 30° (Vertical), 56° (Horizontal), 66° (Diagonal)

PT Angle

Pan: 350°, Tilt: 80°

Minimum Illumination

0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories)

Lens Mount

M12

DNR

3D DNR

WDR

Digital WDR

Black & White Night

30m / 98ft

Video & Audio

Max Resolution

2880*1620

Frame Rate

Max:30fps; Self-Adaptive during network transmission

Video Compression

H.265 / H.264

H.265 Type

Main Profile

Video Bit Rate

Ultra-HD; Hi-Def; Standard. Adaptive bit rate.

Audio Bit Rate

Self-Adaptive

Network

Wi-Fi Standard

IEEE802.11b, 802.11g, 802.11n

Frequency Range

2.4 GHz ~ 2.4835 GHz

Channel Bandwidth

Supports 20MHz

Security

WPA-PSK/WPA2-PSK

Transmission Rate

11b 11 Mbps, 11g 54 Mbps, 11n: 72 Mbps

Wi-Fi Pairing

AP paring

Protocol

EZVIZ Cloud Proprietary Protocol

Interface Protocol

EZVIZ Cloud Proprietary Protocol

Wired Network

RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Functions

Smart Alarm

AI-Powered Human / Vehicle Shape Detection

Auto Tracking

Supports

Customized Alert Area

Supports

Two-way Talk

Supports

General Function

Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark

Storage

Local Storage

Supports microSD Card (Up to 512 GB)

Cloud Storage

Supports EZVIZ CloudPlay storage (Subscription required)

General

Operating Conditions

-30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing)

IP Grade

Weatherproof Design

Power Supply

DC 12V/1A

Dimensions

100 × 136 × 140mm (3.94 × 5.35 × 5.51 inch)

Packaging Dimensions

140 × 140 × 192mm (5.51 × 5.51 × 7.56 inch)

Weight

Net Weight: 539.7g; With Package: 823.6g For EU Standard Version
