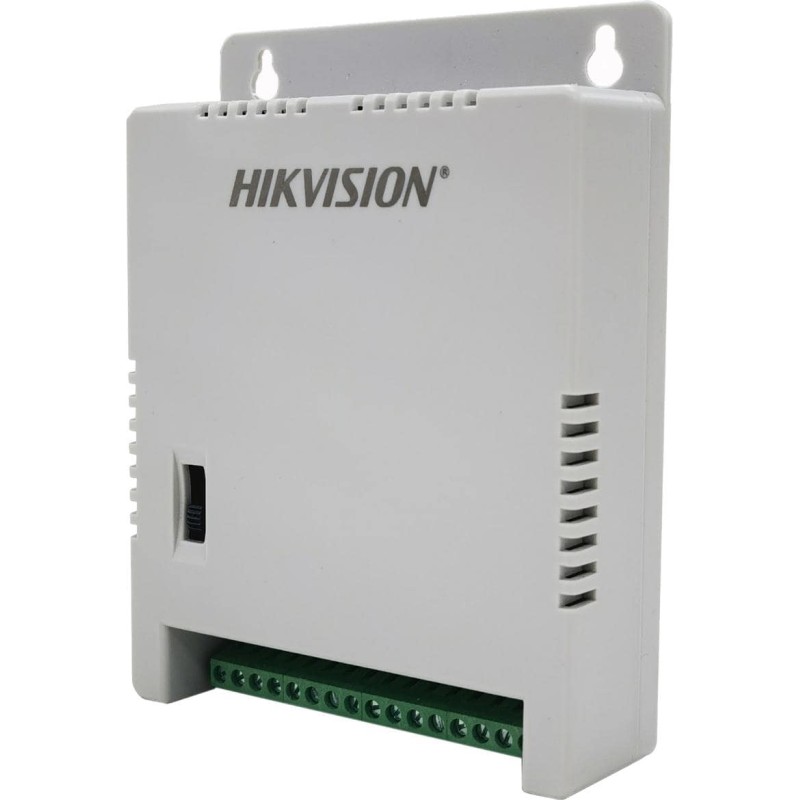

PSU HIIKVISION 8CH ( DS-2FA1205-C8 )
  • PSU HIIKVISION 8CH ( DS-2FA1205-C8 )

PSU HIIKVISION 8CH ( DS-2FA1205-C8 )

Multi-channel SMPS

  • 60 W, 12 VDC/1 A max per channel, max total current is 5 A
  • Over current/short circuit/over voltage protection
  • Good EMC performance
  • Compact size; applicable to cameras
  • 150 to 285 VAC wide voltage input
Rp170.000
Belum Termasuk pajak
Jumlah
10 item

Tanyakan tentang produk di WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Keterangan

Parameter

Model

Parameters

DS-2FA1205-C8

Switching Mode Power Supply

Appearance

White

Input

150 to 285 VAC, 47 Hz to 63 Hz

Output

12 VDC/1 A per channel

Cable Length Compensation

Normal: 12 VDC

Long: 13.5 VDC

Ex-Long: 15 VDC

Ripple & Noise

0.15 Vp-p (150 mV)

AC Input Connector

C8

DC Output Connector

DC Plug: grid terminal

LED Indicator

Green

Operating Conditions

0°C to 40°C (32°F to 104°F), Humidity: 10% to 95% (non-condensing)

Storage Conditions

-40°C to 80°C (-40°F to 176°F), Humidity: 5% to 95% (non-condensing)

Dimension

144 mm × 109.5 mm × 33 mm (5.67" × 4.31" × 1.30")
