Specification
|
Model |

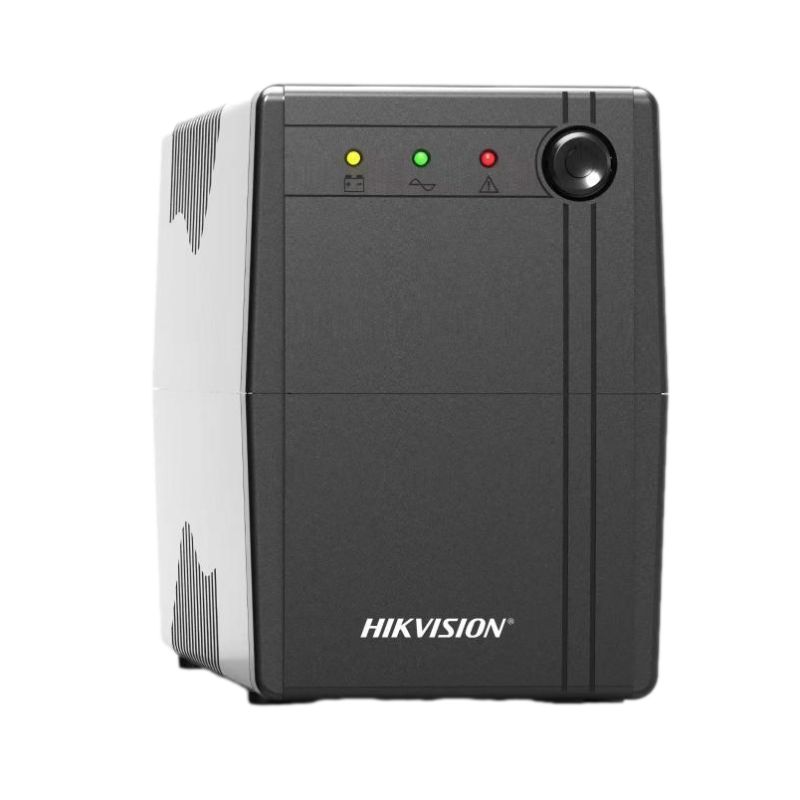

DS-UPS600 |
|
|
Power |
UPS Capacity |
600 VA / 360 W |
|
Input |
Input Voltage Range |
140 VAC to 290 VAC |
|
Input Frequency |
50/60 Hz |
|
|
Output |
Output Voltage Range |
210 VAC to 235 VAC |
|
Output Frequency |
50 Hz ± 0.5 Hz |
|
|
Transfer Time |
≤ 10 ms |
|
|
Waveform |
PWM |
|
|
Battery |
Battery Type |
12 V/7 Ah |
|
Recharge Time |
4-6 hours recover to 90% capacity |
|
|
Indicator |
Display |
LED indicator Working Mode (AC Mode): Solid green Charging Mode (DC Mode): Solid red Overloading Mode: Flashing yellow |
|
Alarm |
Charging Mode (DC mode): Sounding every 8 seconds Low Battery: Sounding every second Overloading Mode: Sounding every 0.5 seconds Fault: Continuously sounding |
|
|
Interface |
Communicate Ports |
No |
|
Protection |
Full Protection |
Surge protection, Overload protection, Discharge protection |
|
General |
Operating Temperature |
0 °C to 40 °C (32 °F to 104 °F） |
|
Operating Humidity |
30% to 90% (non-condensing) |
|
|
Dimension |
274 mm × 95 mm × 139 mm (10.79" × 3.74" × 5.47") |
|
|
Weight |
Approx. 4.2 kg (9.26 lb) |
|
