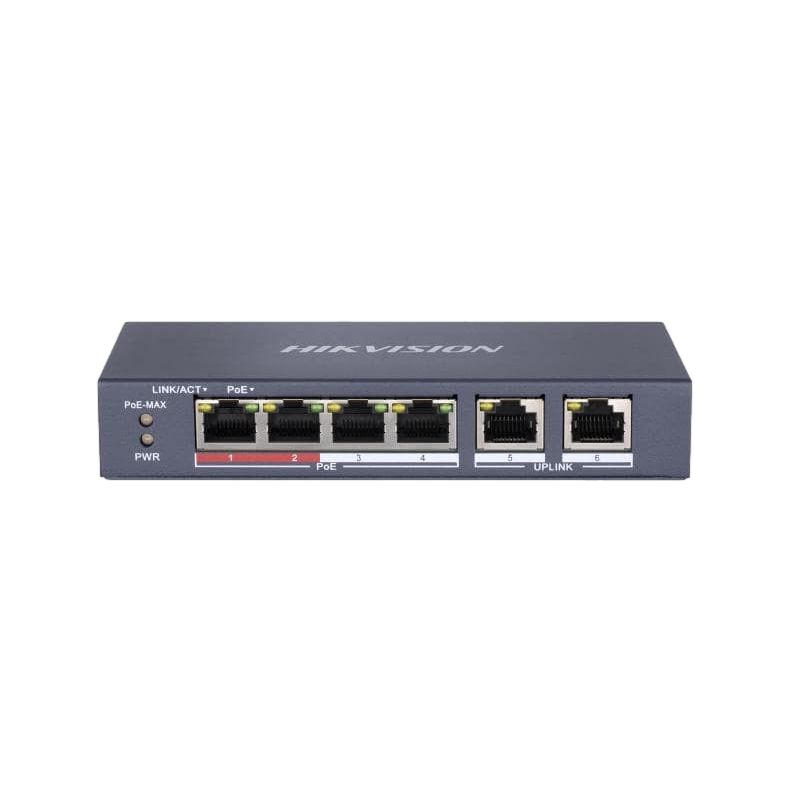

Model
|
DS-3E0106P-E/M
|
|
Network parameters
|
Port number
|
4 x 10/100Mbps PoE ports, and and 2 × 10/100Mbps RJ45 ports
|
|
Port type
|
RJ45 port, full duplex, MDI/MDI-X adaptive
|
|
Standard
|
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
|
|
Forwarding mode
|
Store-and-forward switching
|
|
Working mode
|
Standard mode (default), Extend mode
|
|
High priority ports
|
Ports 1 and 2
|
|
Ports for long-distance transmission
|
Ports 1 to 4
|
|
MAC address table
|
4 K
|
|
Switching capacity
|
1.6 Gbps
|
|
Packet forwarding rate
|
0.8928 Mpps
|
|
Internal cache
|
768 Kbits
|
|
PoE power supply
|
PoE standard
|
Ports 1 to 4: IEEE 802.3af, IEEE 802.3at
|
|
PoE power pin
|
Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
|
|
PoE port
|
Ports 1 to 4
|
|
Max. port power
|
Ports 1 to 4: 30 W
|
|
PoE power budget
|
35 W
|
|
Dialing function
|
Long range
|
Ports 1 to 4: up to 300 m.
|
|
General
|
Shell
|
Metal material, fan-free design
|
|
Gross weight
|
0.52 kg (1.15 lb)
|
|
Net weight
|
0.265 kg (0.58 lb)
|
|
Dimension (L × H × D)
|
145 mm × 68.45 mm × 25.6 mm (5.71” × 2.69” × 1.01”)
|
|
Operating temperature
|
-10°C to 40°C (14°F to 104°F)
|
|
Storage temperature
|
-40°C to 85°C (-40°F to 185°F)
|
|
Operating humidity
|
5% to 95% (no condensation)
|
|
Storage humidity
|
5% to 95% (no condensation)
|
|
Power supply
|
48 VDC, 0.8 A
|
|
Power consumption in idle
|
< 5 W
|
|
Max. power consumption
|
38 W
|
|
Power source
|
38 W
|
|
Approval
|
EMC
|
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-
3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM
(AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016)
|
|
Safety
|
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-
LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)
|
|
Chemistry
|
CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
|
