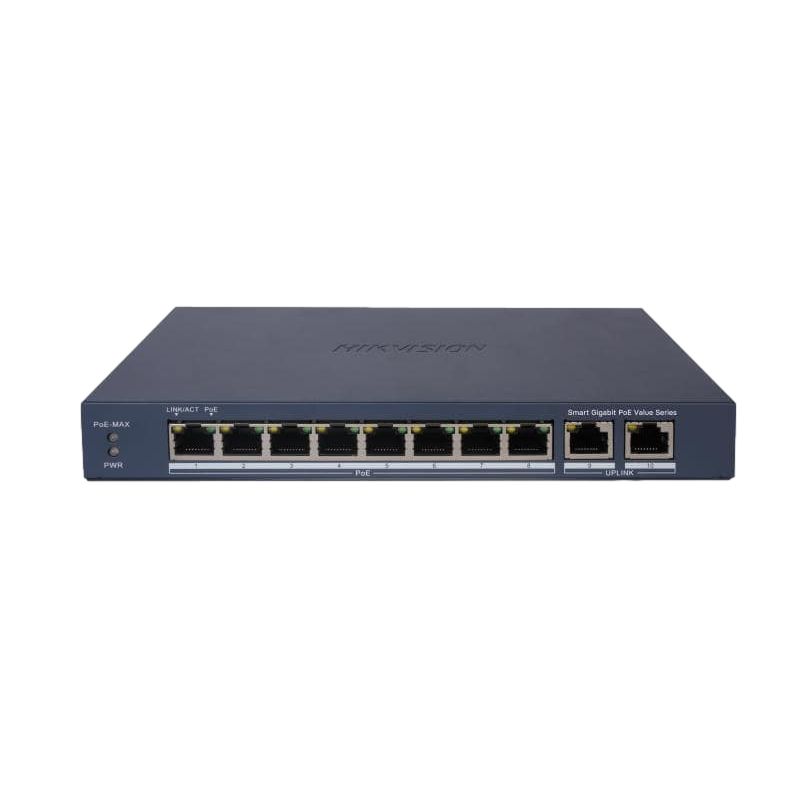

Model
|
DS-3E1510P-EI/M
|
|
Network Parameters
|
Ports
|
8 × Gigabit PoE port,2 × Gigabit RJ45 port
|
|
MAC Address Table
|
4 K
|
|
Switching Capacity
|
20 Gbps
|
|
Packet Forwarding Rate
|
14.88 Mpps
|
|
Internal Cache
|
1.5 Mbits
|
|
PoE Power Supply
|
PoE Standard
|
IEEE 802.3af,IEEE 802.3at
|
|
PoE Power Pin
|
End-span: 1/2(-), 3/6(+)
|
|
PoE Port
|
PoE: Ports 1 to 8
|
|
Max. Port Power
|
30 W
|
|
PoE Power Budget
|
60 W
|
|
Software Function
|
Long Range
|
Ports 1 to 8: up to 300 m.
Long range performance may vary depend on camera model or cable condition.
|
|
Port Isolation
|
Ports 1 to 8: port isolation mode to improve network security
Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
|
|
PoE Watchdog
|
Ports 1 to 8: auto detect and restart the cameras that do not respond.
|
|
Link Aggregation
|
Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.
Support static link aggregation.
Support 3 aggregation groups.
|
|
Loop Prevention
|
Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default.
Support 802.1D STP.
Suppport 802.1w RSTP.
|
|
VLAN
|
VLAN is used for network scale planning and network health improvement. Support 802.1Q.
Configurable VLAN ID from 1-4094. Support Trunk, Access port mode.
Support Max. 32 VLAN.
|
|
HPP
|
Support one-click activation and remote management via Hik-Partner Pro. Functions supported:
- Display the port rate.
- Display the port bandwidth utilization rate.
- Display the PoE power usage.
- Display topology information.
- Display the alarm status.
- Restart ports and devices.
- Enable port long-rage mode.
- Remotely upgrade the device.
|
|
System Maintenance
|
Support device management via web.
Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses.
Support Super IP, which is a fixed IP address (10.180.190.200) for direct access.
|
