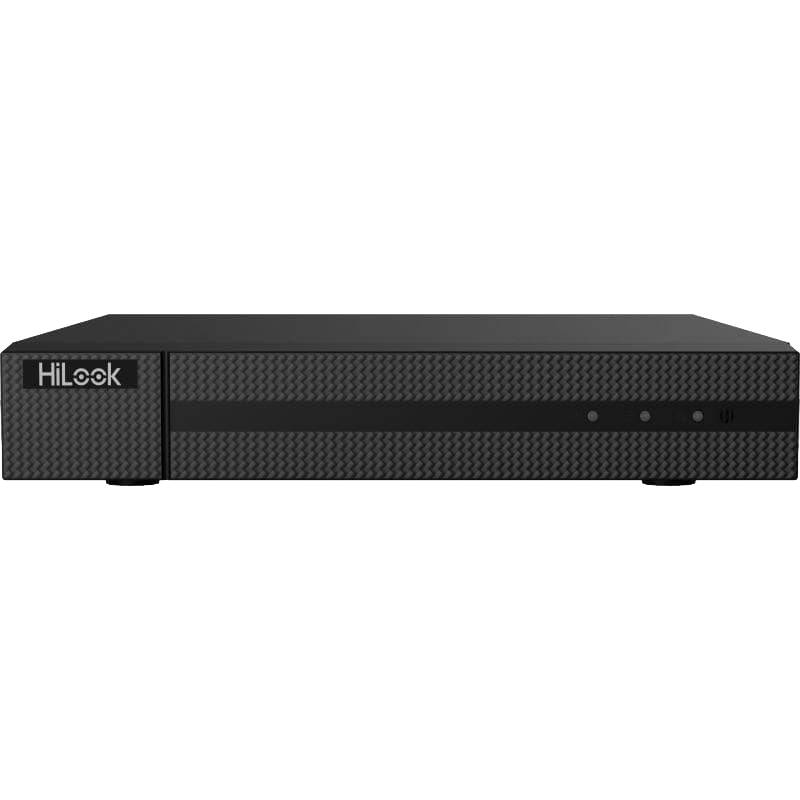

DVR HILOOK 4CH ( DVR-204G-M1/XT )
  • DVR HILOOK 4CH ( DVR-204G-M1/XT )
  • DVR HILOOK 4CH ( DVR-204G-M1/XT )
  • DVR HILOOK 4CH ( DVR-204G-M1/XT )

DVR HILOOK 4CH UP TO 2MP ( DVR-204G-M1/T )

HILOOK

  • Support all channels motion detection technology
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/CVI/AHD/IP/CVBS video inputs
  • Audio over coaxial cable
  • Support all channels HDTVI two-way Audio technology
  • Up to 5-ch IP camera inputs
Rp550.000
Belum Termasuk pajak
Jumlah
5 item

Tanyakan tentang produk di WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Keterangan

Specification

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Video and Audio

IP Video Input

1-ch (up to 5-ch)

Up to 2MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

CVBS Input

Support

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

Synchronous playback

4-ch

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

Video Output Mode

HDMI/VGA simultaneous output

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Two-Way Audio

Reuse the first audio input

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF For 720p stream access: 720p/WD1/4CIF/VGA/CIF

For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)

For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N) For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

Sub-stream:

4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 4 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Network

Total Bandwidth

64 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection

32

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 4 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

Alarm In/Out

N/A

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 10 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

263 × 225 × 48 mm (10.3 × 8.8 × 1.9 inch)

Weight

≤ 0.8 kg (without HDD, 1.8 lb.)
