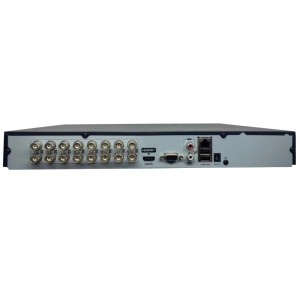

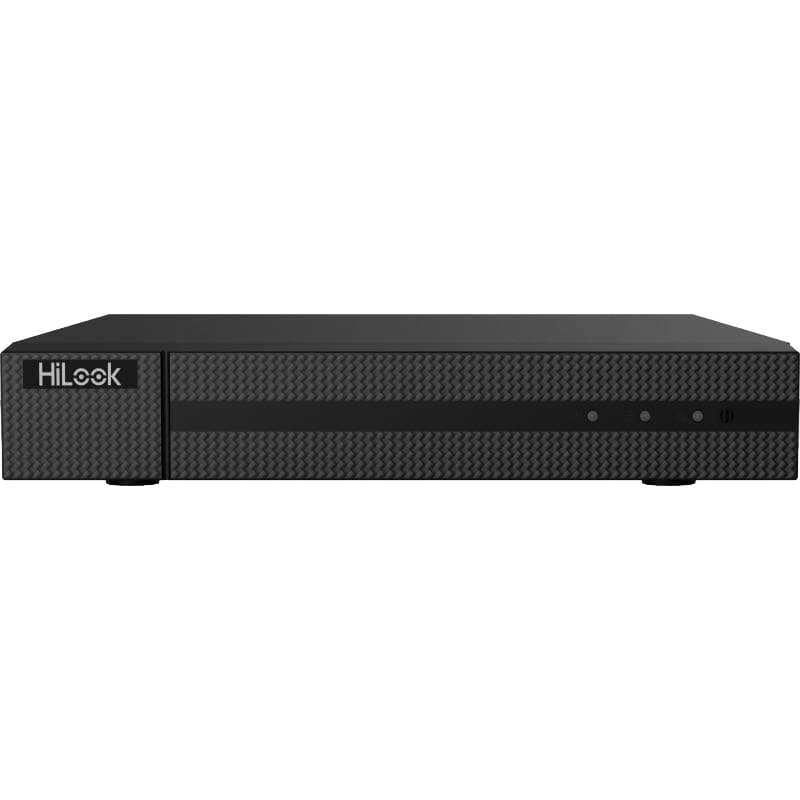

DVR HILOOK 16CH UP TO 5MP ( DVR-216Q-M2 )

Specification

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled:

3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode not enabled:

For  3K  stream  access:  3K  lite@12fps;4  MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For  5  MP  stream  access:  5  MP  lite@12fps;4  MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

For  4  MP  stream  access:  4  MP  lite@15fps/1080pLite@25fps  (P)/30fps

(N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

When 1080p Lite mode enabled:

3K  lite/5  MP  lite@12fps;4  MP  lite@15fps;1080p  lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

Sub-stream:

WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

2-ch (up to 18-ch)

Enhanced IP mode on:

8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

Incoming Bandwidth

96 Mbps

HDTVI Input

3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4

MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,

1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

5MP(2880 × 1620)@25 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4

MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input

PAL/NTSC

HDMI Output

1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 ×

1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous playback

16-ch

Network

Remote Connection

128

Total Bandwidth

128 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,

ONVIF

Network Interface

1, RJ45 10M/100M/1000M

self-adaptive Ethernet interface

Auxiliary Interface

SATA

2 SATA interfaces

Capacity

Up to 10 TB capacity for each disk

USB Interface

Real panel: 2 × USB 2.0
