DVR HILOOK 4CH ( DVR-204Q-M1 )
  • DVR HILOOK 4CH ( DVR-204Q-M1 )
  • DVR HILOOK 4CH ( DVR-204Q-M1 )
  • DVR HILOOK 4CH ( DVR-204Q-M1 )

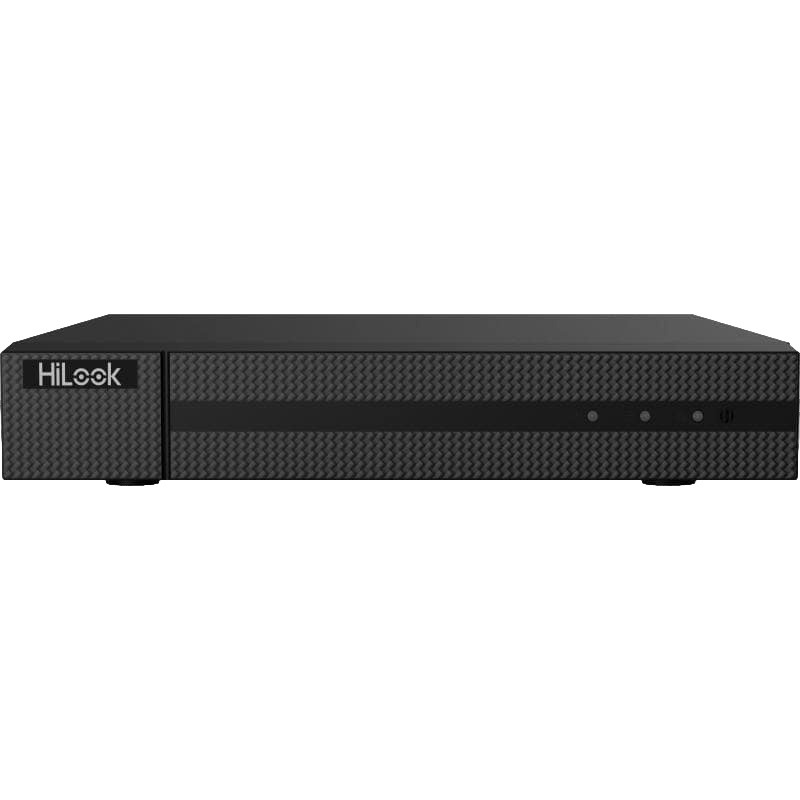

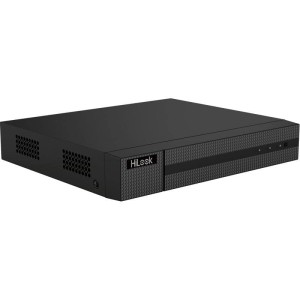

DVR HILOOK 4CH UP TO 5MP ( DVR-204Q-M1 )

HILOOK

  • Deep learning based human and vehicle targets classification of Motion Detection 2.0
  • H.265 Pro+/H.265 Pro/H.265 video compression
  • HDTVI/AHD/CVI/CVBS/IP video inputs
  • Audio via coaxial cable
  • Up to 6-ch IP camera inputs (up to 6 MP)
  • Up to 1080p@15 fps encoding capabilit
Rp725.000
Belum Termasuk pajak
Jumlah
5 item

Tanyakan tentang produk di WhatsApp
  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Keterangan

  1. Specification

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression

H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Encoding Resolution

When 1080p Lite mode is not enabled:

4 MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF; When 1080p Lite mode is enabled:

4 MP Lite/1080p Lite/720p lite/VGA/WD1/4CIF/CIF

Frame Rate

Main stream:

When 1080p Lite mode is not enabled:

For 4 MP stream access:

4 MP lite@15 fps; 1080p Lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

For 1080p stream access:

1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) When 1080p Lite mode is enabled:

4 MP Lite@15 fps; 1080p Lite/720p Lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N) Sub-stream:

WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

Video Bitrate

32 Kbps to 6 Mbps

Dual-stream

Support

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input
  1. ch (up to 5-ch)

Enhanced IP mode on:

  1. ch (up to 6-ch), each up to 4 Mbps Up to 6 MP resolution

Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

4-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4

MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps

AHD Input

5 MP(2560 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,

1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

HDCVI Input

5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,

1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

1-ch, RCA (2.0 Vp-p, 1 KΩ)

4-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Synchronous Playback

4-ch

Network

Total Bandwidth

72 Mbps

Remote Connection

32

Network Protocol

TCP/IP, PPPoE, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS,

ONVIF

Network Interface

1, RJ45 10M/100M self-adaptive Ethernet interface

Wi-Fi

Connectable to Wi-Fi network by Wi-Fi dongle through USB interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

Alarm In/Out

N/A

USB Interface

Real panel: 2 × USB 2.0

General

Power Supply

12 VDC, 1.5 A

Consumption

≤ 8 W (without HDD)

Working Temperature

-10 °C to +55 °C (+14 °F to +131 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight

≤ 1 kg (without HDD, 2.2 lb.)
